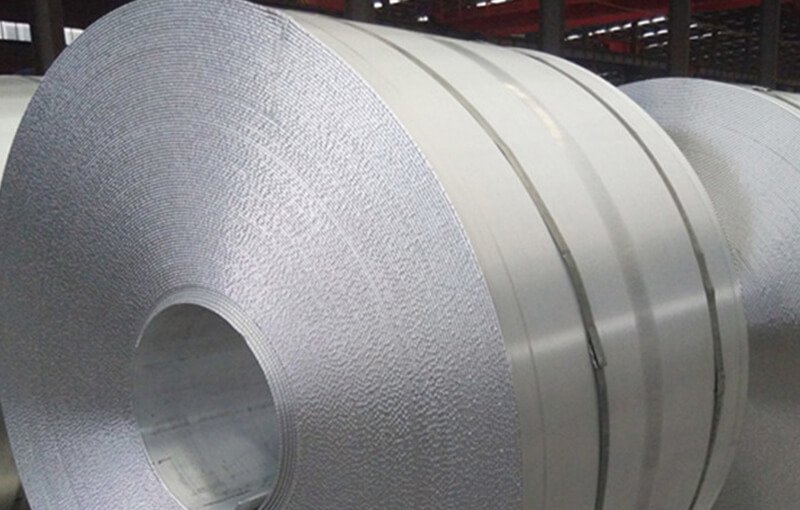

Aluminum alloy coil
Product Introduction
Item | Aluminum Coil | |
Standard | GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc | |
Material | 1050,1060,2A14,3003,3103,4032,5454,5754,5056,5082,5086,6061,6060,6082,7075,7475 | |
Thickness | 0.5-200mm or as required. | |
Width | 100-2000mm or as required. | |
Length | 2000mm-6000mm or as required. | |
Surface | Bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc | |
Price term | Ex-Work,FOB,CNF,CFR,etc | |
Payment Term | TT,L/C,western Union,etc | |
MOQ | 1 Ton | |
Delivery time | 1.The products in stock will delivery immediately received the payment. 2.According to the order quantity,prompt delivery. | |
Package | Standard export package,such as wooden box or as required. | |
Contact | If you have any question ,please feel free to contact me. | |
| Alloy Series | Alloy Model | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Others | Al |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1000 Series | 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | / | / | 0.05 | 0.03 | / | 0.03 | 99.5 |
| 1000 Series | 1060 | 0.25 | 0.35 | 0.05 | 0.05 | 0.05 | / | / | 0.05 | 0.03 | / | 0.03 | 99.6 |
| 1000 Series | 1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.05 | / | / | 0.04 | 0.03 | / | 0.03 | 99.7 |
| 1000 Series | 1100 | 0.95 | / | 0.05 – 0.20 | 0.05 | / | / | / | / | 0.1 | / | 0.05 | 99 |
| 2000 Series | 2014 | 0.5 – 1.2 | 0.7 | 3.9 – 5.0 | 0.4 – 1.2 | 0.2 – 0.8 | 0.1 | / | 0.25 | 0.15 | / | 0.05 | Remainder |
| 2000 Series | 2024 | 0.5 | 0.5 | 3.8 – 4.9 | 0.3 – 0.9 | 1.2 – 1.8 | 0.1 | / | 0.25 | 0.15 | / | 0.05 | Remainder |
| 3000 Series | 3003 | 0.6 | 0.7 | 0.05 – 0.20 | 1.0 – 1.5 | / | / | / | 0.1 | / | / | 0.05 | Remainder |
| 3000 Series | 3004 | 0.3 | 0.7 | 0.25 | 1.0 – 1.5 | 0.8 – 1.3 | / | / | 0.25 | / | / | 0.05 | Remainder |
| 4000 Series | 4004 | 9.0 – 10.5 | 0.8 | 0.25 | 0.1 | 1.0 – 2.0 | / | / | 0.2 | / | / | 0.05 | Remainder |
| 4000 Series | 4043 | 4.5 – 6.0 | 0.6 | 0.3 | 0.15 | 0.2 | / | / | 0.2 | / | / | 0.05 | Remainder |
| 5000 Series | 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5 – 1.1 | 0.1 | / | 0.25 | / | / | 0.05 | Remainder |
| 5000 Series | 5050 | 0.4 | 0.7 | 0.2 | 0.1 | 1.1 – 1.8 | 0.25 | / | 0.25 | / | / | 0.05 | Remainder |
| 6000 Series | 6063 | 0.2 – 0.6 | 0.35 | 0.1 | 0.1 | 0.45 – 0.9 | 0.1 | / | 0.1 | / | / | / | Remainder |
| 8000 Series | 8006 | 0.4 | 1.2 – 2.0 | 0.3 | 0.3 – 1.0 | 0.1 | / | / | 0.1 | / | / | / | Remainder |
| Alloy Grade and Condition | Tensile Strength (25℃, MPa) | Yield Strength (25℃, MPa) | Hardness (500kg Force, 10mm Ball) | Elongation (for 1.6mm – thick Coil, %) |
|---|---|---|---|---|
| 5052 – H112 | 175 | 195 | 60 | 12 |
| 5083 – H112 | 180 | 211 | 65 | 14 |
| 6061 – T651 | 310 | 276 | 95 | 12 |
| 7050 – T7451 | 510 | 455 | 135 | 10 |
| 7075 – T651 | 572 | 503 | 150 | 11 |
| 2024 – T351 | 470 | 325 | 120 | 20 |
Packaging and transportation
8unit in 1*20GP container , 12units in 1*40HQ container, Fumigated wood tray and 10mm wire fixed.
