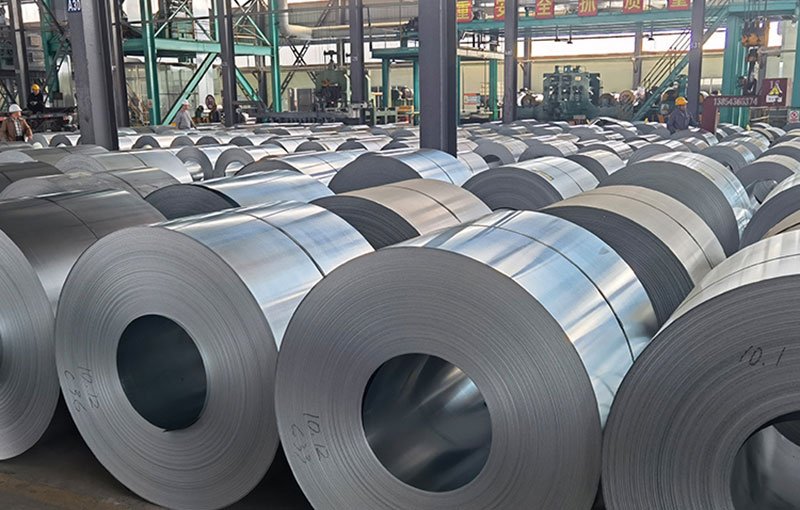

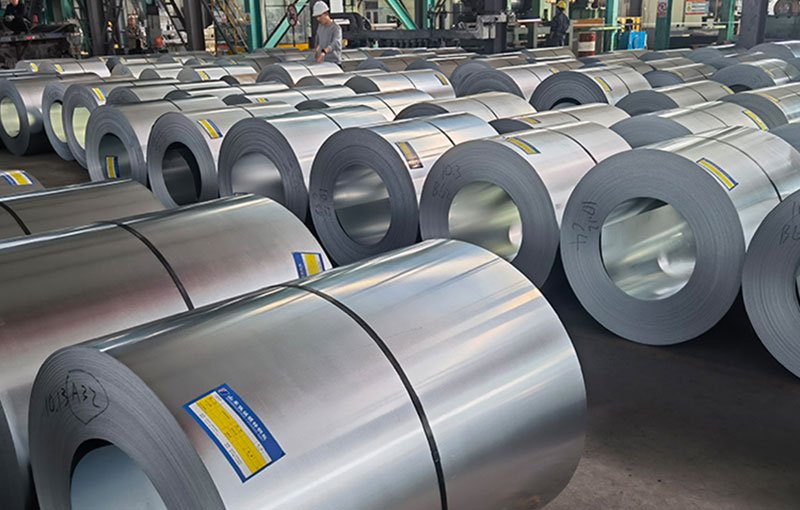

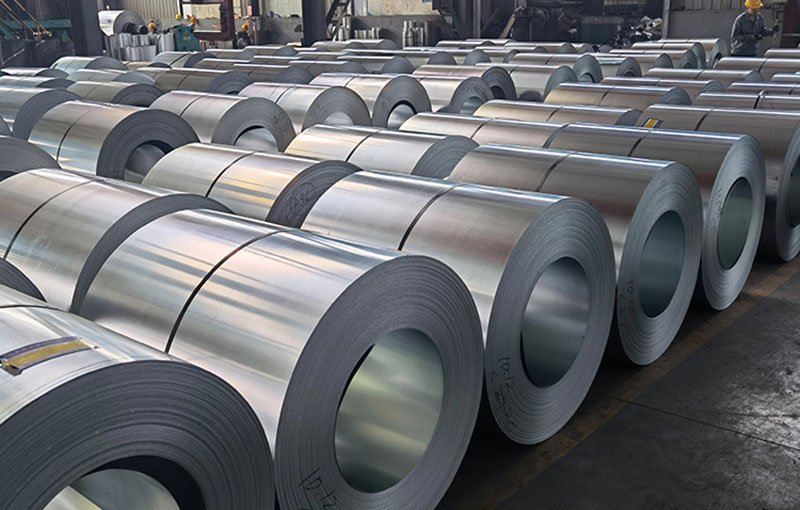

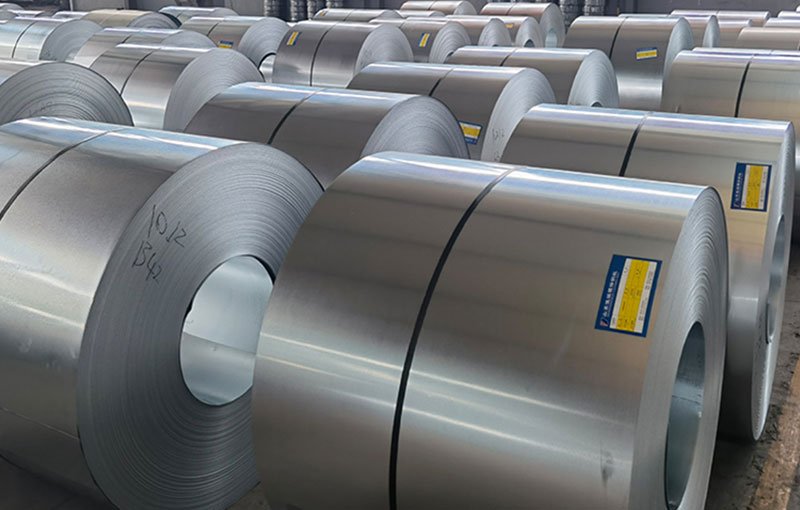

Galvanized Coil/Strip
Product Introduction
Thickness | 0.13-3.0mm |
Width | Galvanized steel strip：24-600 mm; galvanized steel coil:600-1250mm |
Coil weight | Usually is 3-4.5 tons,the max coil is 10 tons |
Zn coating | 0.13-0.8 mm is 30-150 g/m2; 0.8-1.5 mm is 30-180 g/m2;1.5-6.0 mm is 30-275 g/m2 |
Coil ID | 600-1500 mm,Normal width is 91 4/1000/1219/1250/1500 mm |
Steel grade | DX51D,DX52D,DC01,DC02,SGHC |
Surface | regular/mini/big/zero spangle,skin pass, chromated, unoiled, dry |
Packaging | seaworthy export standard package, or according to the customers’requirement |
Delivery time | With 15 –25 days after receipt of deposit or L/C |
Market | North/South America, Europe, Asia,Africa,Mid East |
Productivity | 2000 Metric ton /month |
| Grade | C | Si | Mn | P | S | Ti |
|---|---|---|---|---|---|---|
| DX51D+Z | 0.12 | – | 0.60 | 0.045 | – | 0.30 |
| DX52D+Z | 0.12 | – | 0.60 | 0.045 | – | 0.30 |
| DX53D+Z | 0.12 | – | 0.60 | 0.045 | – | 0.30 |
| DX54D+Z | 0.12 | – | 0.60 | 0.045 | – | 0.30 |
| DX56D+Z | 0.12 | – | 0.60 | 0.045 | – | 0.30 |
| DX57D+Z | 0.12 | – | 0.60 | 0.045 | – | 0.30 |
| SGCD2 | – | – | – | – | – | – |
| SGC490 | 0.30 | 0.50 | 2.00 | 0.035 | 0.025 | – |
| SGC510 | 0.30 | 0.50 | 2.50 | 0.035 | 0.025 | – |
| S220GD+Z | 0.20 | 0.60 | 0.70 | 0.045 | 0.025 | – |
| S250GD+Z | 0.20 | 0.60 | 0.70 | 0.045 | 0.025 | – |
| S280GD+Z | 0.20 | 0.60 | 0.70 | 0.045 | 0.025 | – |
| S320GD+Z | 0.20 | 0.70 | – | 0.045 | 0.025 | – |
| S350GD+Z | 0.20 | 0.70 | – | 0.045 | 0.150 | – |
| S550GD+Z | – | – | – | 0.045 | 0.150 | – |
| Alloy Grade/Designation | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%, L0=80mm) | Application Notes |
|---|---|---|---|---|
| SGCC / DX51D+Z | 140 – 300 | 270 – 410 | ≥12 | General purpose, construction, automotive parts |
| SGCD1 / DX52D+Z | 120 – 280 | 260 – 380 | ≥14 | Formable parts, moderate bending requirements |
| SGCD2 / DX53D+Z | 100 – 240 | 240 – 360 | ≥16 | High formability, deep drawing applications |
| SGCD3 / DX54D+Z | 90 – 220 | 230 – 330 | ≥18 | Extra deep drawing, complex shapes |
| S220GD+Z | ≥220 | 300 – 420 | ≥12 | Structural components, moderate strength |
| S250GD+Z | ≥250 | 330 – 450 | ≥10 | Higher strength structural parts |
| S280GD+Z | ≥280 | 360 – 480 | ≥8 | Heavy-duty structural applications |
| S320GD+Z | ≥320 | 400 – 520 | ≥6 | High-strength structural parts |
| S350GD+Z | ≥350 | 420 – 550 | ≥5 | Engineering structures with high load requirements |
Packaging and transportation
8unit in 1*20GP container , 12units in 1*40HQ container, Fumigated wood tray and 10mm wire fixed.
